thickness height app. frontal open area app. material kg/m2 app. max. width x length
mm mm % mm
1.5 6.5 33,3 Steel 8,8 1500 x 3000 or 2500 x 2000
      Stainless steel 8,8 1500 x 3000 or 2500 x 2000
      Aluminium 3 1500 x 3000 or 2500 x 2000
2 7 33,3 Steel 11.6 1500 x 3000 or 2500 x 2000
      Stainless steel 11.6 1500 x 3000 or 2500 x 2000
      Aluminium 4 1500 x 3000 or 2500 x 2000
3 8 33,3 Steel 17.5 1500 x 3000 or 2500 x 2000
      Stainless steel 17.5 1500 x 3000 or 2500 x 2000
      Aluminium 6 1500 x 3000 or 2500 x 2000

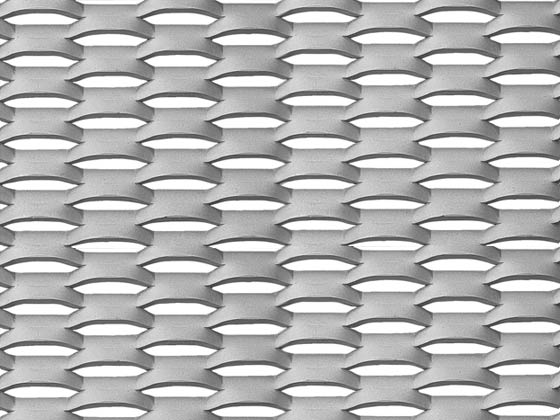

-The long way of mesh (LWM) runs parallel to the width of the product (on picture from left to right).
