thickness height app. frontal open area app. material kg/m2 app. max. width x length
mm mm % mm
1.5 9 36,2 Steel 9 1500 x 3000 or 2500 x 2000
      Stainless steel 9 1500 x 3000 or 2500 x 2000
      Aluminium 3 1500 x 3000 or 2500 x 2000
2 10 36,2 Steel 12 1500 x 3000 or 2500 x 2000
      Stainless steel 12 1500 x 3000 or 2500 x 2000
      Aluminium 4 1500 x 3000 or 2500 x 2000
3 11 36,2 Steel 18 1500 x 3000 or 2500 x 2000
      Stainless steel 18 1500 x 3000 or 2500 x 2000
      Aluminium 6 1500 x 3000 or 2500 x 2000

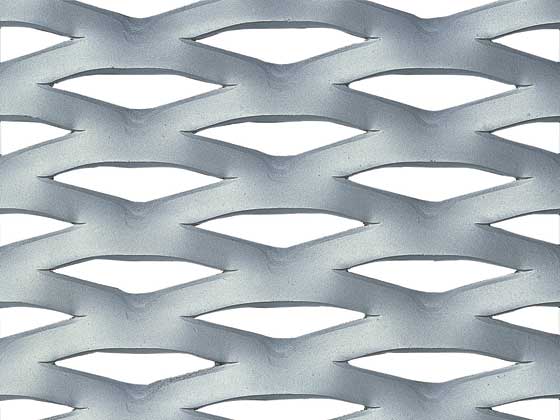

-The long way of mesh (LWM) runs parallel to the width of the product (on picture from left to right).
