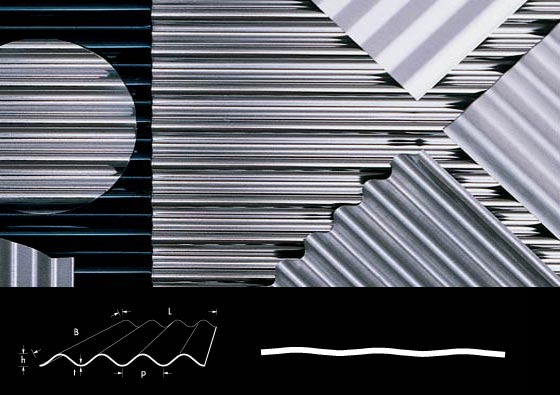

thickness (t) height (h) app. open area app. kg/m2 app. min. grid (p) diameter single relief waterflow direction std. width x length max. width x length
mm mm % mm mm mm mm
0.8 1.5 - 6.5 14.5 14.5 // width of sheet - 1490* x 3001,5* or 2990*x 1261,5*


-It is possible to define the grid measure yourself (excluding the range below the technical minimum).
-Larger sheet dimensions may be possible, on request.

*Max. length and max. width depend on the grinding direction.
