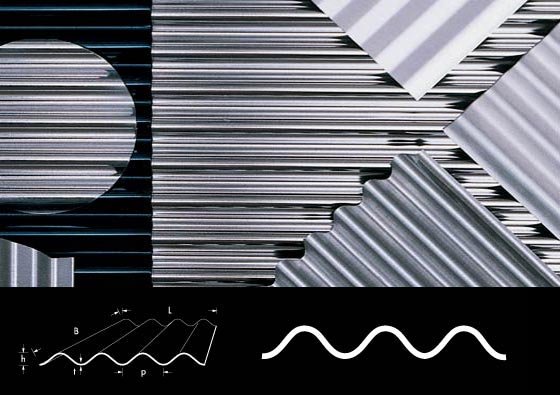

thickness (t) height (h) app. open area app. kg/m2 app. min. grid (p) diameter single relief waterflow direction std. width x length max. width x length
mm mm % mm mm mm mm
1 6 - 3.4 14.5* 14.5 // width of sheet 1250** x 2407 or 2990** x 1044 1490** x 2407 or 2990** x 1044


-Larger sheet dimensions may be possible, on request.

*The grid (p) is fixed on this measure.
**If the width is more dan 1.450 mm the length additionally has 2x 50 mm plain edges, needed for anodising.
