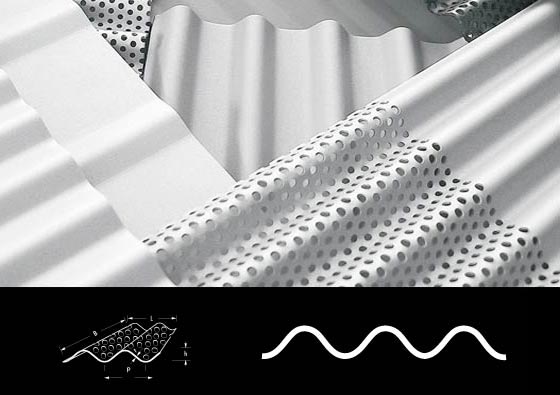

thickness (t) height (h) app. open area app. kg/m2 app. min. grid (p) diameter single relief waterflow direction std. width x length max. width x length
mm mm % mm mm mm mm
1 6.2 37 2.2 14.5* 14.5 // width of sheet 1250 x 2407 1490** x 2407


-Larger sheet dimensions may be possible, on request.

*The grid (p) is fixed on this measure.
**If the width is more dan 1.450 mm the length additionally has 2x 50 mm plain edges, needed for anodising.
