thickness height app. frontal open area app. material kg/m2 app. max. width x length
mm mm % mm
1.5 19 26 Steel 9.7 1500 x 3000 or 2500 x 1800
      Aluminium 3.2 1500 x 3000 or 2500 x 1800
2 20 26 Steel 12.8 1500 x 3000 or 2500 x 1800
      Aluminium 4.2 1500 x 3000 or 2500 x 1800
3 21 26 Steel 19.3 1500 x 3000 or 2500 x 1800
      Aluminium 6.4 1500 x 3000 or 2500 x 1800

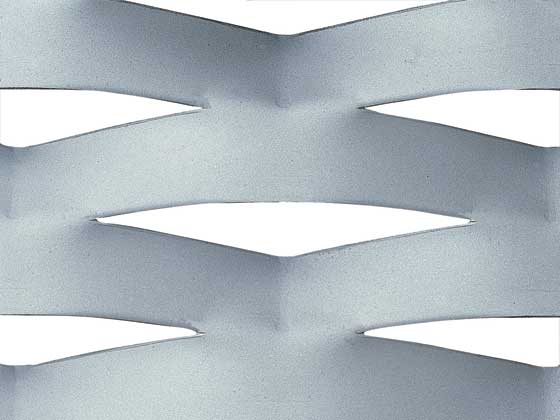

-The long way of mesh (LWM) runs parallel to the width of the product (on picture from left to right).
