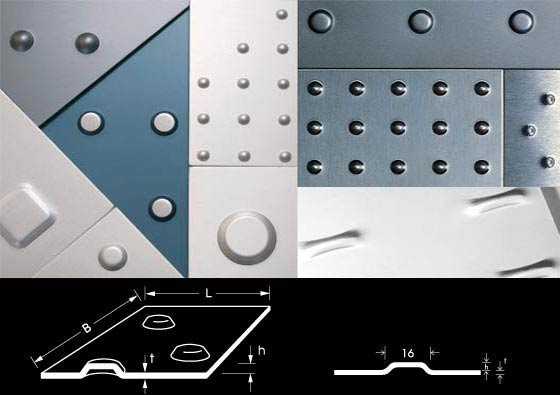

thickness (t) height (h) app. open area app. kg/m2 app. min. grid (p) diameter single relief waterflow direction std. width x length max. width x length
mm mm % mm mm mm mm
2 3 - 5.4 on request 16 - 3000 x 1500 3990* x 2000*


-It is possible to define the grid measure yourself (excluding the range below the technical minimum).
-Larger sheet dimensions may be possible, on request.

*Max. width and length depend on the grid.
